Introduction

The OpenFaaS project has been around since late 2016, and since then it’s seen many different kinds of users. Some are hobbyists, others are independent consultants who want to get the job done, some sneak it into a corporate stack without getting approval from their managers (they know what they need!), others make a conscious decision to adopt functions for more flexibility than cloud functions can offer. Some VPs and CTOs just know that a function-based approach will help their team to move faster. The list of ADOPTERS.md is long and varied, and unfortunately only a small subset of users make it into that list.

One particular type of user that we’ve seen from the very early days is the “Platform team” and the “SaaS team”. Let me briefly introduce you to both:

Platform team - they’re tasked with providing a way for internal developers and teams to run functions, without having to deal with the complexity of Kubernetes.
SaaS team - they want to extend their own product with code, and OpenFaaS provides a cost-effective and scalable way to do that.
A mixture of both.

Examples of the Platform team include: mnemonic AS, who provide a vanilla OpenFaaS for Enterprises experience with IAM, users can deploy via GitLab or faas-cli using their identity. Citrix (based in the UK) built a web portal where automation engineers can input Python and PowerShell into a form, which is saved into a database, built as a function, and deployed into a white-labelled OpenFaaS called “CAP Lambda”.

SaaS teams look like: Cognite, Waylay.io, Kubiya and Patchworks.

Cognite wrapped OpenFaaS and white-labelled it as “Cognite Functions”, they offer it to data-scientists at oil mining companies in order to run their own simulations and models against huge data-sets.
Waylay.io built a platform for industrial IoT and automation, with very clever use of bayesian networks for running workflows. Each part of the workflow is an OpenFaaS function, built with our Function Builder and deployed into their Kubernetes cluster. Customers can provide the function via a UI.
Kubiya is building a conversational AI for DevOps teams, think of saying something like “Provision a 3x node EKS cluster in us-east-1 with 2x t3.large and 1x t3.medium” and having it just work. They use the Function Builder to build Python functions dynamically and to deploy them to customer clusters, instead of to a central cluster.
Patchworks offers e-commerce integrations and transformations - their product is a kind of glue. Customers provide PHP code via a web UI, then the Function Builder is used to build and deploy the function into their Kubernetes cluster, they’re then scaled to zero until a customer integration runs and needs to be executed.

Sometimes we see a mix of both, LivePerson for instance built a functions platform around OpenFaaS which means their customers get to inject custom code into chat workflows. Their VP of engineering also told me that it’s become an essential way for their own developers to build new features and services - quickly, and easily without affecting the core product.

What are customers saying?

Here’s what Shaked Askayo, Co-founder & CTO of Kubiya.ai wanted to say about OpenFaaS:

“Exploring serverless orchestration on Kubernetes at Kubiya, we encountered powerful platforms like Knative, yet found them overly complex to manage. OpenFaaS struck the perfect balance. It combines dynamic elasticity, intuitive function packaging, a robust API and comprehensive metrics. With secure namespace isolation for managing multi-tenant environments, OpenFaaS has proven to be a perfect fit for our needs.”

In late 2021, Veselin Pizurica, President of Waylay.io wrote an article on why OpenFaaS for Enterprises was right for them: Case-study: Building a Low Code automation platform with OpenFaaS

More recently Artyom Sivkov, Engineering Director at Waylay gave us an update on how things are going with OpenFaaS.

“At Waylay.io, OpenFaaS is our default choice when it comes to building robust, performant and scalable solutions for both SaaS and on-premises deployments. We especially value the constant evolution of OpenFaaS that brings more and more added value to our products and attention of OpenFaaS team to our requests and feedback.”

We’ve also just signed a deal with E2E Networks Limited, who provide cloud computing infrastructure and managed services. They’ll be white-labelling OpenFaaS so that they can offer a “functions capability” for customers, think of it like AWS Lambda, but run with additional flexibility. The popularity of OpenFaaS along with the flat-rate cost of our enterprise licensing was particularly attractive to them, as well as their customers being able to debug and test functions locally using the Community Edition.

Core components

In each of these multi-tenant use-cases, the customers have a Kubernetes cluster, this could be self-hosted (Rancher, K3s, Kubespray, Ansible, on-prem or cloud-based) or a managed offering like AKS, GKE or EKS.

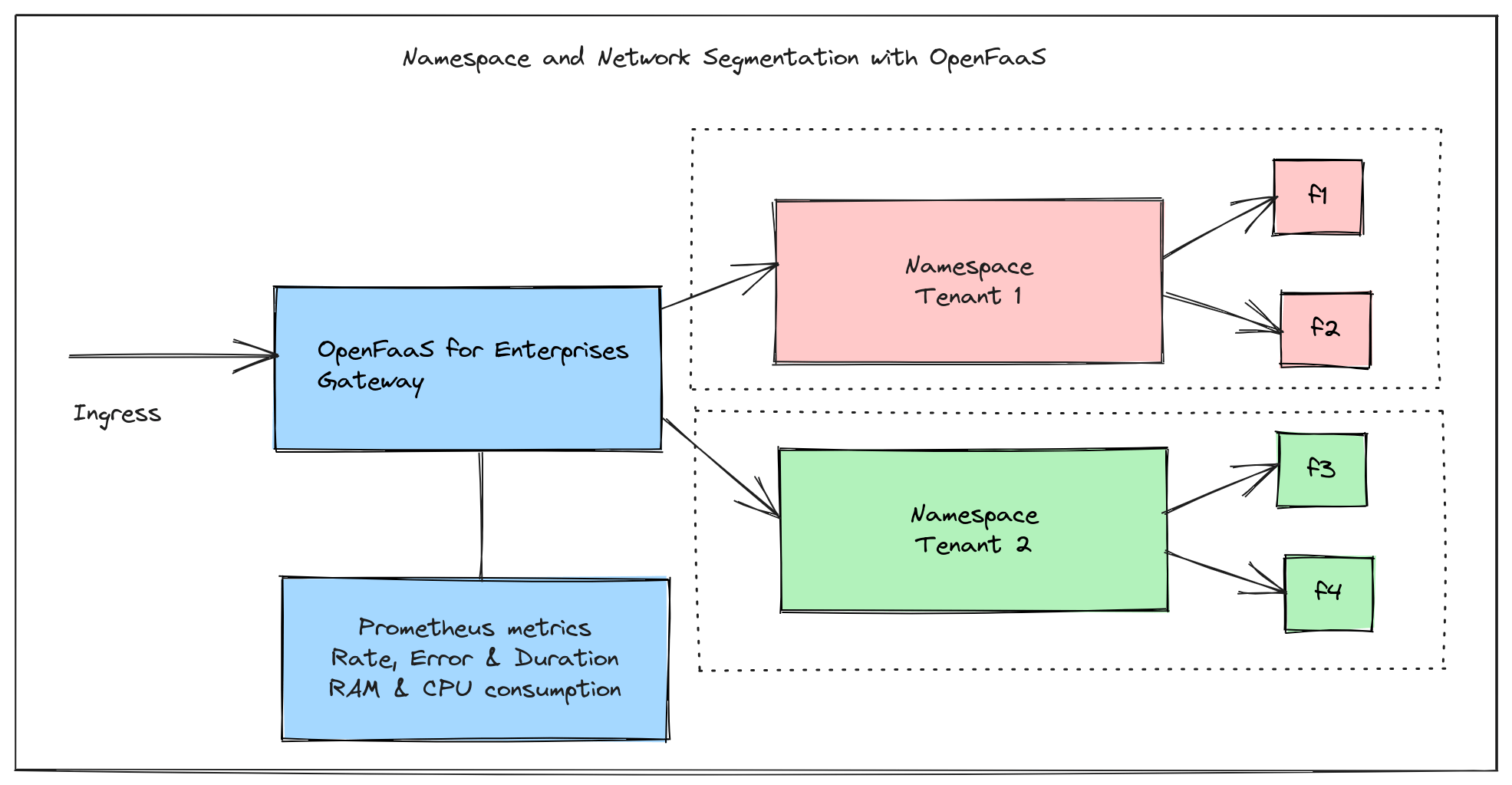

Network and namespace segmentation per tenant

Network and namespace segmentation per tenant

Next, they install OpenFaaS for Enterprises using the Helm chart:

Function Builder - build and publish a function image from source code
OpenFaaS for Enterprises - OpenFaaS with added IAM, scale to zero, multiple namespaces, multi-user dashboard and runtimeClass support
Network segmentation - they segment and isolate customer functions by namespace, using network policies or Istio to prevent cross-talk between tenants
Non-root policy - they configure the OpenFaaS controller to only run functions under a restrictive runtime policy with non-root and a read-only root filesystem
Runtime Class - in the case of Cognite, they used a Profile to make sure that functions can only run using gVisor, Google’s sandboxed runtime for containers. On AWS EKS, Fargate can provide a similar level of isolation
Node pool isolation - some customers want to have their code run on a dedicated node-pool, that’s supported through the Profile concept
Ingress - each customer gets a route to their own namespaces - whether that’s a HTTP path, a subdomain, or a wildcard subdomain
Monitoring - Prometheus and Grafana are used to monitor the functions by the team operating the platform

Chargeback is a common requirement, and was one of the selling points for E2E Networks Limited. We explained how for every function we have metrics for:

Number of replicas
CPU seconds used per function
RAM consumed per function
Invocations per function - duration and count

Egress could also be added to this mix by deploying Cilium or Istio to collect Pod metrics, they then need to be correlated by namespace and Pod name to the function name.

Provision a namespace per tenant

You’ll need to create a namespace per tenant using kubectl or the Kubernetes API. The OpenFaaS REST API doesn’t have an endpoint to manage namespaces, however we will be adding it soon due to popular demand.

Imagine we have a tenant called tenant1, create an annotate a namespace for them:

apiVersion: v1
kind: Namespace
metadata:
  annotations:
    openfaas: "1"
  labels:
    kubernetes.io/metadata.name: tenant1
  name: tenant1
spec: {}

If your customers are entering code into linked git repositories, or are using a code editor hosted within your own product, then you probably won’t need to create individual Policies and Roles for each customer.

However, for the Platform team, this is probably essential.

Create a Policy so that tenant1 can read and write to their own namespace:

apiVersion: iam.openfaas.com/v1
kind: Policy
metadata:
  name: tenant1-rw
  namespace: openfaas
spec:
  statement:
  - sid: rw
    action:
    - Function:Read
    - Function:Admin
    - Secret:Read
    effect: Allow
    resource: ["tenant1:*"]

Next, you’ll need the tenant’s unique identity as seen in your OpenID Connect provider. For example, in Keycloak, this is the sub claim:

apiVersion: iam.openfaas.com/v1
kind: Role
metadata:
  name: tenant1-admin
  namespace: openfaas
spec:
  policy:
  - tenant1-rw
  principal:
    jwt:sub:
     - aa544816-e4e9-4ea0-b4cf-dd70db159d2e
  condition:
    StringEqual:
      jwt:iss: [ "https://keycloak.example.com/realms/openfaas" ]

Learn in: Walkthrough of Identity and Access Management (IAM) for OpenFaaS

Accepting code from your end users

All OpenFaaS functions are built into container images - either using a template (which itself has a Dockerfile), or using a Dockerfile directly.

We generally see customers provide only one programming language to their own users, Waylay offers Node.js, Cognite offers Python, and Patchworks offers PHP.

But there’s nothing stopping you from allowing a user to pick a template, then provide the additional files for the function’s handler and package management tool:

For Python:

Template: python3-http
Handler: handler.py
Manifest: requirements.txt

For Go:

Template: golang-middleware
Handler: handler.go
Manifest: go.mod

For Node.js:

Template: node18
Handler: handler.js
Manifest: package.json

There are a few options for accepting the customer’s source code to build it into an image:

Enable IAM for OpenFaaS and create a Policy and Role so that customers can deploy directly to their own namespaces
Write a web portal with a code editor like ACE or Monaco, then use the Function Builder API to build and deploy the function
Integrate with GitHub or GitLab webhooks, so customers just commit their code to linked repositories, and your platform checks out the code and uses the Function Builder to do the rest

In the first case, with direct API access, you may not have any access to the customer’s code, but will receive a container image. This use-case is supported by some managed functions platforms, but the customer often has to push the image to a registry that you control before attempting a deployment.

In the second and third case, you’ll likely have access to the code and will build it for the customer. Here, you have the opportunity to run static analysis tools to check for bots, exploits, malware or other security issues. Bandit is an open source tool designed to find common security issues in Python code, you could run it as part of the build process for Python functions.

Where should you store images for customers?

In every managed functions service we’ve ever seen from AWS Lambda, to Google Cloud Run to hosted OpenFaaS, the answer is always the same: a registry that you own, control and operate.

Why? By having images in your own registry you can:

decrease the cold-start latency by having fast access to images
increase security continually scan and monitor images for exploits and vulnerabilities
reduce the complexity of managing the many non-standard and complex approaches for registry authentication
reduce costs by having images pulled from a registry operated in the same network or region as the OpenFaaS cluster

The Function Builder

The Function Builder is a REST API that builds and publishes containers when it’s provided with a Dockerfile and context. The task it performs is very similar to running docker build -t registry/image:tag . && docker push registry/image:tag.

A conceptual diagram of going from source code, and a template to a container ready to deploy to OpenFaaS

A conceptual diagram of going from source code, and a template to a container ready to deploy to OpenFaaS

It comes with:

Rootless mode - the builder runs as a non-root user, and builds images as a non-root user
Monitoring and metrics an a Grafana dashboard
Single replica or multiple replicas to load-balance builds
Concurrency limiting to prevent overloading the cluster
Layer caching to speed up builds
Mutual TLS generation to prevent builds from being hijacked

Monitoring the builder - throughput, duration and concurrency

Monitoring the builder for throughput, duration and concurrency

We have documentation and examples for various languages:

Manage customer functions via API

The following API endpoints are available for managing functions:

Functions:

Create, update, delete, list, query status
Query logs

Secrets:

Create, Update, Delete, List

An invocation count and RAM/CPU consumption are included in the list functions endpoint, however Prometheus provides a separate API endpoint for running queries.

Useful links:

OpenAPI specification for OpenFaaS
Go structs in faas-provider are also very useful.
Go SDK for OpenFaaS

Deploying an image via the OpenFaaS REST API can be as simple as the following curl command:

export HOST=http://127.0.0.1:8080
export PASSWORD="" # OpenFaaS REST API password
export FUNCTION="hello-world"
export NAMESPACE="tenant1"

export IMAGE=ttl.sh/openfaas-image:1h

curl -s \
  --data-binary \
  '{"image":"'"$IMAGE"'", "service": "'"$FUNCTION"'", "namespace": "'$NAMESPACE'"}' \
  http://admin:$PASSWORD@$HOST/system/functions

The above example uses the root account and basic authentication, however you can also use a JWT token and a specific Role and Policy linked to a trusted identity provider.

You can also add labels, environment variables, annotations, secrets, CPU/RAM requests and limits, scheduling constraints and more by adding them to the JSON payload.

Learn all the options by studying the FunctionDeployment struct in faas-provider

Of course, in addition to creating a function, you can also query, update, delete and list functions using the REST API.

At times, your customers may also need a number of secrets, these can also be created by an API call to the OpenFaaS gateway.

Create a secret called minio-access-key within the tenant1 namespace:

export HOST=http://127.0.0.1:8080
export PASSWORD="" # OpenFaaS REST API password
export NAMESPACE="tenant1"
export SECRET_NAME="minio-access-key"
export SECRET_VALUE="API KEY VALUE"

curl -s \
  --data-binary \
  '{"name":"'"$SECRET_NAME"'", "value": "'"$SECRET_VALUE"'", "namespace": "'$NAMESPACE'"}' \
  http://admin:$PASSWORD@$HOST/system/secrets

value - is used to pass a string as the value of the secret
rawValue - can be used to pass binary data as a secret

To show a list of functions for a customer’s namespace run:

export HOST=http://127.0.0.1:8080
export PASSWORD="" # OpenFaaS REST API password
export NAMESPACE="tenant1"

curl -s \
  http://admin:$PASSWORD@$HOST/system/functions?namespace=$NAMESPACE

To get the status for a specific function run:

export HOST=http://127.0.0.1:8080
export PASSWORD="" # OpenFaaS REST API password
export NAMESPACE="tenant1"
export FUNCTION="hello-world"

curl -s \
  http://admin:$PASSWORD@$HOST/system/function/$FUNCTION?namespace=$NAMESPACE

In each API example, it may be useful to pipe the output to jq.

The faas-cli is an official client for the OpenFaaS REST API, and you can use it to get insights into different API calls.

FAAS_DEBUG=1 faas-cli list

GET http://127.0.0.1:8080/system/functions
User-Agent: [faas-cli/dev]
Authorization: [Bearer REDACTED]
Function                      	Invocations    	Replicas
custom                        	5              	0
echo                          	10             	1

Here’s another example showing labels:

FAAS_DEBUG=1 faas-cli store deploy figlet --label com.openfaas.scale.zero=true --label com.openfaas.scale.zero-duration=2m
PUT http://127.0.0.1:8080/system/functions
User-Agent: [faas-cli/dev]
Authorization: [Bearer REDACTED]
Content-Type: [application/json]
{"service":"figlet","image":"ghcr.io/openfaas/figlet:latest","envProcess":"figlet","labels":{"com.openfaas.scale.zero":"true","com.openfaas.scale.zero-duration":"2m"},"annotations":{}}

Deployed. 202 Accepted.
URL: http://127.0.0.1:8080/function/figlet

Customers can write logs to stdout and stderr, these will be picked up by OpenFaaS and printed out to the function’s logs:

Scale to Zero

Whenever a function is deployed, you can control how it scales by setting various labels.

For a multi-tenant platform, we often see customers enabling scale to zero by default, but it is optional.

com.openfaas.scale.zero - true or false - default is false
com.openfaas.scale.zero-duration - the time in a Go duration where there are no requests incoming before scaling a function down i.e. 20m, 1h

Scale to Zero is also included in OpenFaaS Standard.

Profiles

The Profiles concept was our way of keeping the OpenFaaS function specification concise, whilst allowing for more complex Kubernetes configurations to be applied to functions.

Profiles are created in the openfaas namespace by an administrator.

Functions can adopt a pre-defined profile by setting an annotation: com.openfaas.profile: <profile_name>, or by specifying a comma-separated list of profiles: com.openfaas.profile: <profile_name>,<profile_name2>.

This includes: podSecurityContext, affinity, tolerations, topologySpreadConstraints and runtimeClassName.

A note on This example makes a function adopt the gvisor profile for sandboxing the container using Google’s gVisor project:

kind: Profile
apiVersion: openfaas.com/v1
metadata:
    name: gvisor
    namespace: openfaas
spec:
    runtimeClassName: gvisor

Learn more about gVisor here: What is gVisor?

Kata Containers also offer Kubernetes integration using lightweight VMs such as Cloud Hypervisor (an alternative to Firecracker).

You will need to consider all of these within your platform, so read up how to use them in the docs.

Charge your customers

If you’re running a business, you’ll likely have to charge your customers for the resources they use. If you’re building an internal service, and you don’t need to charge, you may want to report and monitor usage.

Rate, Error and Duration aka RED metrics are available for every function
Pod RAM and CPU consumption metrics are also available, grouped by function

There are many metrics, but for a couple of brief examples:

gateway_functions_seconds contains all the seconds of execution time per function, so you could query: gateway_functions_seconds{namespace="tenant1"}.
gateway_service_count shows the amount of replicas of a function, so by combining this with the RAM request or limit, you could calculate GB-seconds of RAM used gateway_service_count{namespace="tenant1", name="hello-world"}.
pod_cpu_usage_seconds_total shows seconds of CPU consumed per function, which includes time between invocations and may be more accurate so, you’d query pod_cpu_usage_seconds_total{namespace="tenant1", name="hello-world"}.

There are more metrics available to you than these, so have a look through them to decide how you want to measure and report back to your customers or the rest of the business.

Read about the various metrics included here: Docs: Monitoring Functions

Learn how to query Prometheus via API: Docs: Prometheus HTTP API

Make sure you have long-term retention of metrics if you’re using them for billing.

Don’t edit the OpenFaaS Prometheus configuration directly, but instead, run a separate Prometheus/Thanos/Cortex/Grafana Mimir instance and scrape the OpenFaaS Prometheus instance using Prometheus federation

A note on function configuration

In the Helm chart, set:

functions.setNonRootUser - force every function deployed to run as a non-root user, even if the Dockerfile uses root

When you deploy functions you can enforce additional constraints:

Set a specific Profile to have functions only run on certain nodes
Set a profile to force the use of gVisor or Kata container sandboxing using a runtimeClass
Set CPU/RAM requests or limits to prevent resource exhaustion
Set readOnlyRootFilesystem to prevent functions from writing to the root filesystem, they’ll still be able to write temporary data to /tmp/

Auto-scaling limits including scale to zero are controlled through labels at deployment time.

The readOnlyRootFilesystem setting, CPU/RAM requests and limits are controlled through additional fields in the function’s spec. See the OpenFaaS YAML reference as a guide.

You can define a custom PodSecurityContext for functions using a Profile too, here’s an example:

kind: Profile
apiVersion: openfaas.com/v1
metadata:
    name: gvisor
    namespace: openfaas
spec:
    podSecurityContext:
        runAsUser: 1000
        runAsGroup: 3000
        fsGroup: 2000
        runAsNonRoot: true

In addition in both OpenFaaS Standard and OpenFaaS for Enterprises, AllowPrivilegeEscalation is set to false by default and cannot be changed on functions.

EnableServiceLinks

Functions have the EnableServiceLinks configuration set to false. Service Links were an early feature in Kubernetes used to help with service discovery by injecting environment variables of the name of services within the namespace.

Why would you want to disable this? The values can be enumerated to discover other functions, or services deployed to the namespace.

Once disabled, there will still be an environment variable printed for the Kubernetes API server itself. This is hard-coded in the Go code for Kubernetes and presents absolutely no risk whatsoever. When some users see this, they mistakenly assume that EnableServiceLinks is not working or being set appropriately.

KUBERNETES_SERVICE_PORT=443
KUBERNETES_SERVICE_PORT_HTTPS=443
KUBERNETES_PORT=tcp://10.43.0.1:443
KUBERNETES_PORT_443_TCP=tcp://10.43.0.1:443
KUBERNETES_PORT_443_TCP_PROTO=tcp
KUBERNETES_PORT_443_TCP_PORT=443
KUBERNETES_PORT_443_TCP_ADDR=10.43.0.1
KUBERNETES_SERVICE_HOST=10.43.0.1

If in double, you can do the following:

$ faas-cli store deploy env

$ kubectl get deploy/env -n openfaas-fn -o yaml|grep -i servicelink
      enableServiceLinks: false

The default Service account for Functions

Functions can assume a named service account through the com.openfaas.serviceaccount annotation. This is useful for functions that need to access the Kubernetes API, or other resources within the cluster.

It is recommended that you restrict the annotations that are applied to functions for your tenants, so that they cannot use this environment variable, however bear in mind that this can only be used to select a pre-existing service account within the tenant’s namespace, and there is no way for them to create one through the OpenFaaS APIs.

All functions will obtain a token from the default Service Account in the tenant namespace:

$ kubectl get serviceaccount -n openfaas-fn
NAME      SECRETS   AGE
default   0         235d

$ kubectl get serviceaccount -n dev
NAME      SECRETS   AGE
default   0         150d

The default service account has no privileges, and presents no risk to the cluster if a customer’s code was to attempt to use it with the Kubernetes API server.

If you really wish, you can disable the automatic mounting of the service account.

After creating a namespace for a tenant, patch the Service Account:

$ kubectl create namespace tenant1
$ kubectl patch serviceaccount default -n tenant1 -p '{"automountServiceAccountToken": false}'

Learn more: Configure Service Accounts for Pods

Cloud IAM and Metadata endpoints

Certain cloud platforms such as AWS EC2 make a metadata endpoint available to all virtual machines, which can be used to retrieve temporary credentials for the cloud provider’s API.

Unless you’ve explicitly granted privileges to the virtual machine, there should be empty, or very minimal read-only privileges granted to the instance.

That said, each cloud provider has its own security model, and you should review the documentation for the cloud provider you are using.

From the “Security Practices for Multi-Tenant SaaS Applications using Amazon EKS” documentation: Restrict the use of host networking and block access to instance metadata service

Network policies to control access to the core services

Remember to create Network Policies with your Container Networking Interface (CNI) driver of choice to prevent functions from accessing the Kubernetes API or services in other namespaces.

Encrypting of traffic at the network level / mTLS

Various CNI drivers and service meshes offer encryption of traffic between pods, so you may want to introduce this in addition to network policies.

Istio and Linkerd offer an alternative to encryption at the network level by injecting sidecars to each Pod and redirecting all traffic through a proxy using mutual TLS (mTLS). For an example of how to do this with Istio, see: Learn how Istio can provide a service mesh for your functions

Limit ranges and quotas for the namespace

For the namespace, you may also wish to add a Limit Range. A Limit Range may restrict a customer to using a maximum of 5 vCPU and 8GB of RAM for instance, across all replicas of his or her functions.

Stefan Prodan, a prior contributor to OpenFaaS and maintainer of Flux and Flagger suggested adding Resource Quotas to the restrictions per namespace. So whilst a Limit Range could prevent a functions from taking more than say 8GB of RAM, it wouldn’t prevent an exhaustion attack where the customer creates 8000 functions with 1MB of RAM each.

ResourceQuotas can be created through YAML and kubectl, or via the Kubernetes API using a client.

Backing up customer functions

In most of the platforms we’ve seen, today’s generation of GitOps tools don’t offer a solution.

Customers often build by entering text into an online editor, or by publishing an image and triggering a deployment.

In one case, we learned of a customer with hundreds of functions, which would have to be recreated by their users if there was a catastrophic failure of their Kubernetes cluster.

Fortunately, OpenFaaS Standard and OpenFaaS for Enterprises both offer a solution - the Custom Resource Definition (CRD).

The Function CRD can be used to export customer functions from each namespace, as simply as: kubectl get functions -n tenant1 -o yaml.

We also wrote a back-up tool for customers who are not yet on a version of OpenFaaS which uses the CRD:

Backup and migrate functions between clusters with a new export command for the OpenFaaS CLI

Here’s what Andrew Downey, Head of Development at Patchworks had to say about the tool:

“Our DevOps team was very grateful of the help. We used the earlier version of the export command to migrate every single function between two different cloud providers and Kubernetes clusters with essentially no pain. Massive thanks for that. The operator is enabled in our new cluster so any future (and hopefully that’s distant future) migrations will be even easier.”

Wrapping up

I wanted to introduce you to a some customers and their use-cases for multi-tenancy. I also wanted to introduce some of the core ideas and concepts that you’ll need to consider when building a multi-tenant platform with OpenFaaS.

Whilst this is not an exhaustive guide, it is built from real-world experience and feedback from customers, and I think it’ll help you get started.

There’s a lot more to OpenFaaS that we could have talked about like giving direct access to faas-cli and the multi-tenant dashboard, integration with GitHub Actions or GitLab, event-triggers like Cron, Kafka and asynchronous function invocations with NATS JetStream.
